Carbon Fibre Repair
We can undertake a whole array of carbon fibre repairs on almost any composite items, be it for cars, bicycles, motorbikes, boats, yachts and more. Whether you require small Autoclaved or oven cured pre-preg repairs to damaged areas, small or larger wet laminated repairs or simply stripping off and refinishing chipped, scratched, dented or peeling/lifting clear coats or 2k lacquers to restore cosmetics in our spray booth with the very best Sata guns and our highly skilled technicians.
Repair Options:
There are several Carbon Fibre repair route options open to us depending on what is available and what you require:
Option 1: Use existing customer supplied mould tooling if available to make Autoclaved or oven cured pre-preg or wet laminated repair sections. These are then wet layed or pre-preg laminated back into the component.
Option 2: If the part is thin and flimsy, has hollow areas or many fixings meaning autoclaving a mould tool repair section from a non-damaged similar or mirror area in carbon is not possible, then we can manufacture small epoxy putty or high TG wet laminated fibreglass or Carbon Fibre mould tools off mirrored areas of the part.
Option 3: Reverse engineering the part by white light scanning the part to produce a 3D CAD model and then machining the required male or female tooling from epoxy tooling block on our 5 axis CNC router.
Option 4: Cutting away impact damaged area and scarf grinding the laminate and sheet waxing over the missing area and then wet laminating staggered layers of Carbon Fibre across to re-form the area to the required thickness.
Option 5: Popular for diffusers and splitters, for cosmetic repairs, where no moulds exist, we can wet lay epoxy repairing the rear of the part, carefully grinding away the surface ply and set in a new piece of low temperature cure pre-preg to match the weave. We would then Autoclave cure, sand and polish or sand and re-clear coat to blend in the repair to a factory finish.
With any of the above, inspection reports can be produced if required using our FARO GAGE arm with Geomagic qualify probe software to show repaired areas against your supplied CAD, or against a measured or white light scanned by us equivalent mirrored area.
Some examples of previously Reverie repaired carbon fibre items;

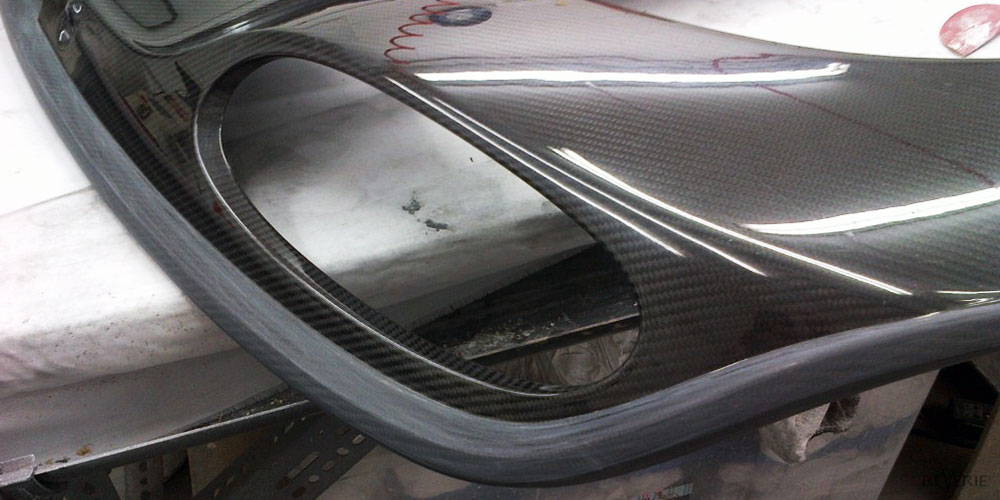

- Audi R8 rear diffuser and rear wing

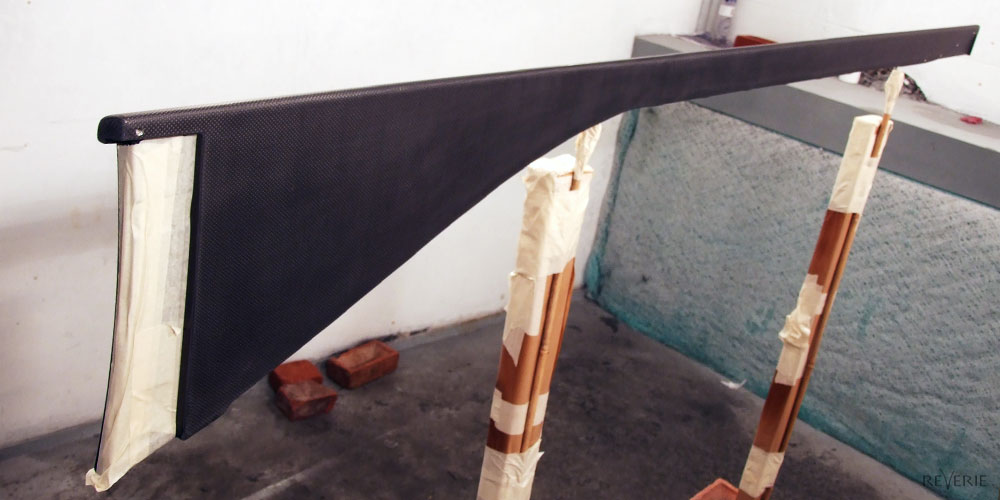

- Bugatti Veryon side sill
- Catamaran spinnaker poles and chutes
- Catamaran and dinghy / yacht mast or boom repairs

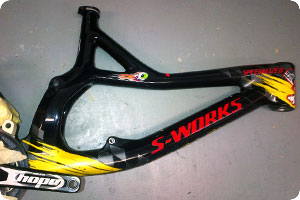

- Cube mountain bike frame
- Carbon racing cycle wheels and road bike carbon frame repairs
- Ducatti desmosdici crash damaged rear hugger, front mudguard and instrument binnacle/ inner nose fairing.
- Dymag wheels repairs and refurbishments

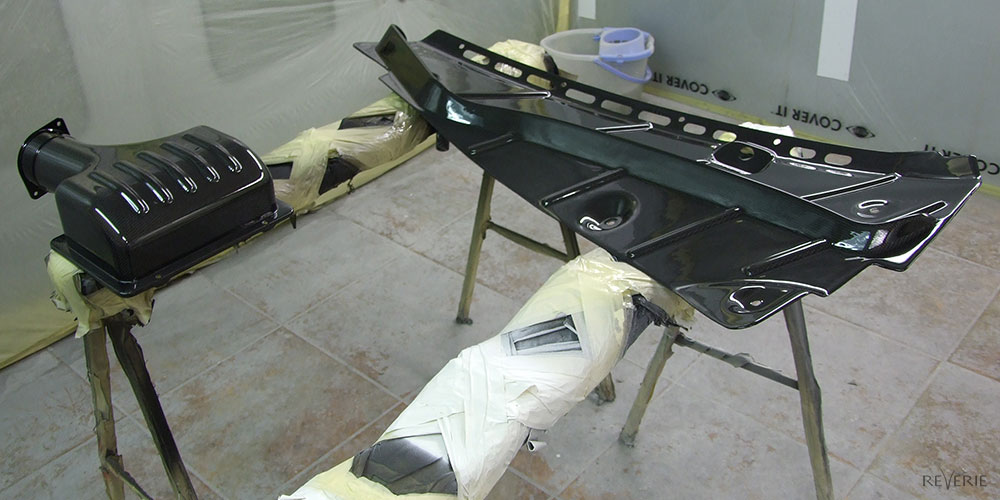

- Ferrari 430 rear engine panel refurbs
- Ferrari F40 carbon Kevlar front wheel well

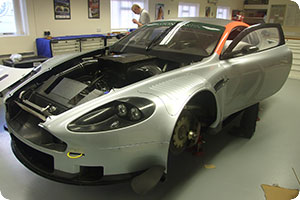

- LMP1 LMP2 GT1 GT2 race car panels, floors and diffuser repairs
- Jordan Formula one floor repairs and others
- Porsche 993 997 GT3 RS rear wing re-lacquer / clear coat
- Ultima GTR rear wing refurbs
- Various super bike carbon fairings
