Carbon Tool manufacturing

We can manufacture high Quality Autoclaved composite tools to OEM A-Surface standards if required, from cnc machined and painted Epoxy master pattern block. For a slightly cheaper option with still good tolerance and surfacing we can tool up directly off machined and hand finished non painted epoxy block.
The Epoxy tools produced can be post cured to above you’re service temperature to a maximum of 220’c. Normally a 1-8-1 ply lay-up is used (200gsm, 660gsm, 220gsm), however other lay-ups on request. Also additional 5mm CFRP bulkheads can be hand laminated in as a backing structure if needed with High temperature laminating resin.

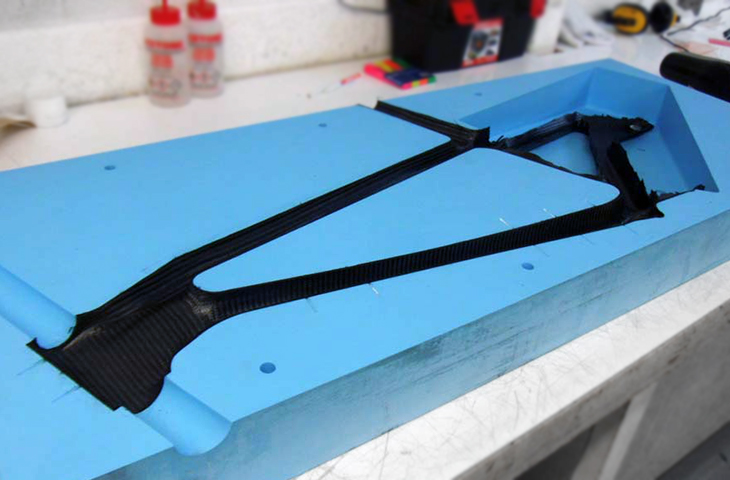

Cnc machined Epoxy female tool being laid up with carbon 45’ strips for all sharp edges and radius first to ensure a perfect Male CFRP Production tool surface with no bridging

Reverie 6 cylinder air box 2 piece CFRP 1-8-1 tools made off male solid cnc male pattern and PU wier board to create split line

Aircraft stringer tool for resin infusion use by client
Cnc machined Epoxy female tool being laid up with carbon 45’ strips for all sharp edges and radius first to ensure a perfect Male CFRP Production tool surface with no bridging
