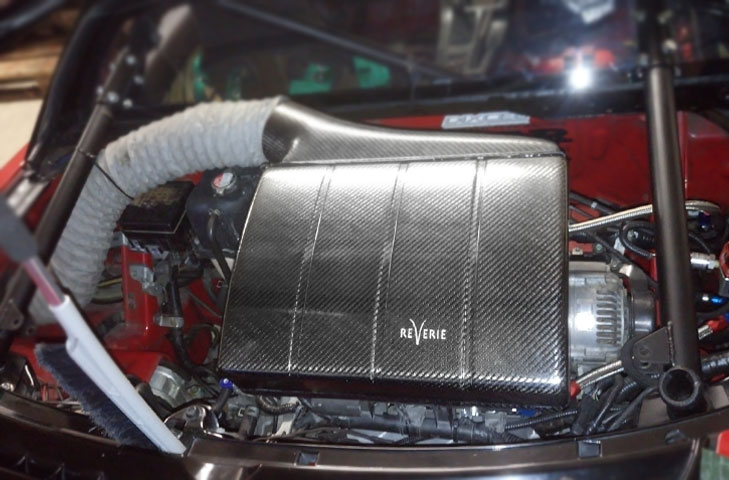

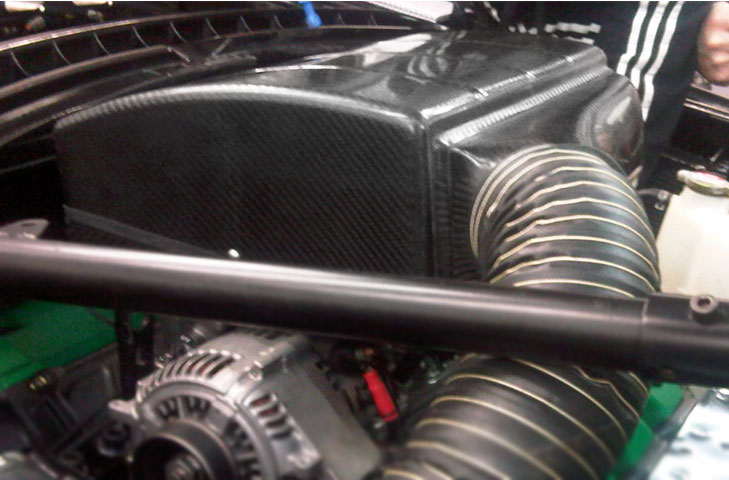

Carbon Fibre induction kit designed to fit the first generation Honda/Acura NSX manufactured between 1990 and 2005 fitted with the 3.0 or 3.2L V6 engine (C30A V6 and C32B V6).
This is only for modified cars fitted with 6 individual throttle bodies!
The kit consists of:
R01SE0139 Hockenheim 405 Carbon Fibre air box with standard backplate,
R01SE0433100mm side feed cowl air intake

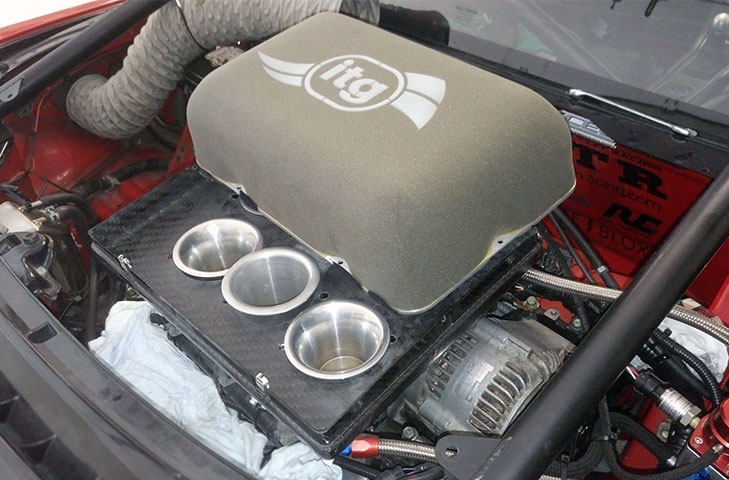

R01SE6183 R01SE6183 High performance dome air filter to mount inside airbox base.
It will be necessary to trim the air box lid down to an appropriate height to fit the engine bay - This will depend on your intake lengths and trumpet lengths, we can do this if you notify us of the height that is required, it is likely the intake side will need to be higher and that side has to be a minimum of 165-170mm. The side cowl is 142mm high the Airbox base is 25mm high.

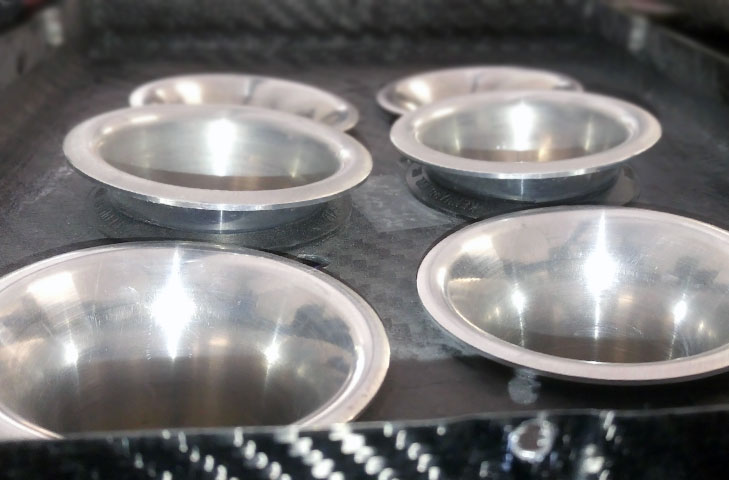

you will need to purchase rubber trumpet grommets seprately to fit your engine , this is so the box can be positioned at the height needed along the trumpets (clearing fuel rail etc), you can then fabricate brackets to hold the airbox base in position at required height
For more images of this air box kit, visit our Honda induction page.
Technical Drawing Note full size shown can be cut down
Technical Drawing of 100mm side cowl intake page 2 right hand side
