Universal ReVerie CNC Rear Wing Alloy Swan Mounts Black Anodised - Pair

Product Description

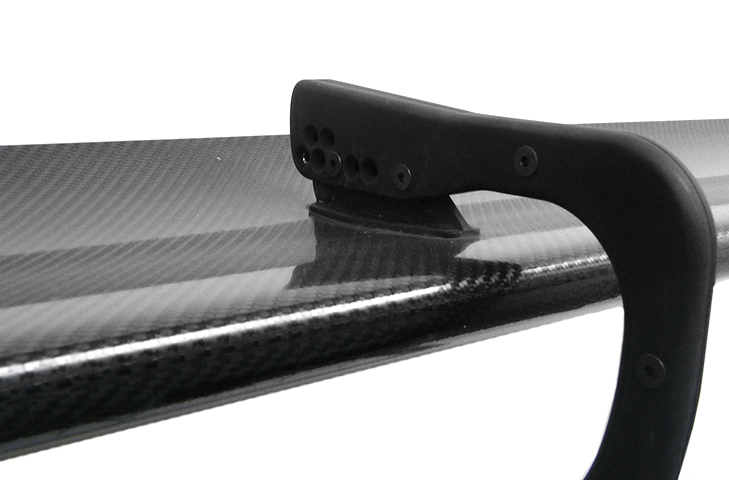

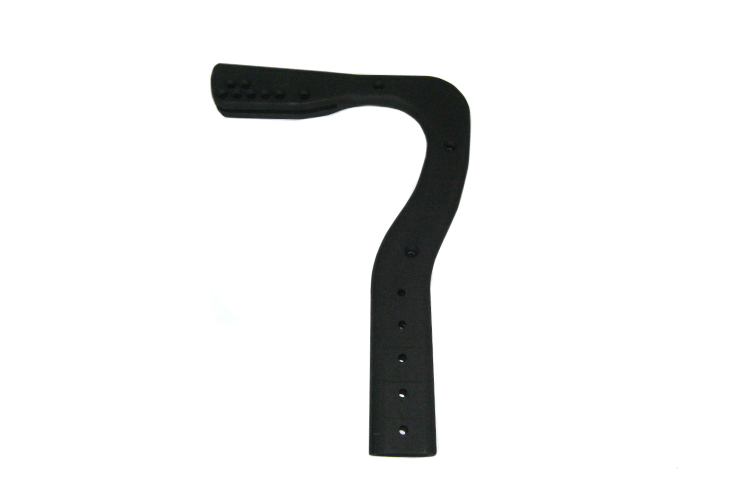

These CNC Alloy 'swan' style wing mounts are specifically designed for Reverie rear wings including the 225mm, 310mm Low Drag and 310mm High Downforce wing. The mounts feature an array of 12 AoA holes allowing you to finely adjust the AoA of the wing in 2 degree increments (when used in conjunction with our 'swan' neck wing mounts).
The mounts are also adjustable in height see technical drawing....(Max overall height is 338mm)

To purchase these mounts along with the mount base, allowing you to mount to your car, please purchase part R01SB0521.
These mounts are ideal without the feet where you may wish to mount through the body / clamshell to chassis only and hence do not need the feet.

Worldwide shipping available.

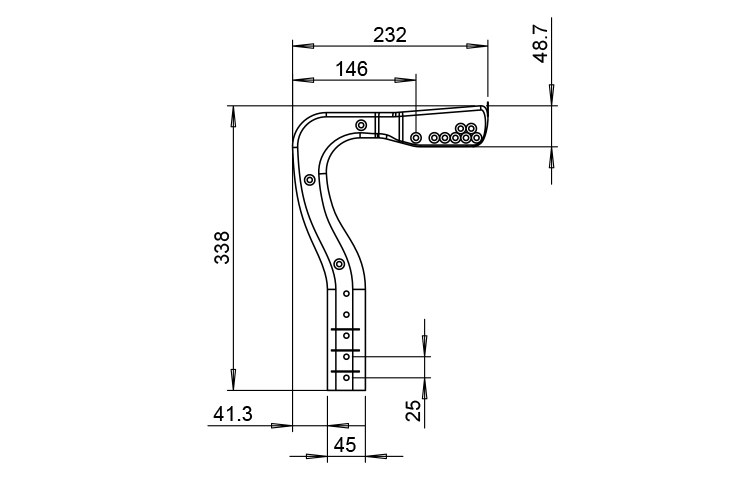

Tech Drawing

Part Code
R01SB0518
In Stock
In Stock
UOM
Pair
Price
£770.65 (ex. VAT)

View Compatible Fitments

Product Options

Qty
