Ultima GTR/Can-Am Carbon Fibre Rear Diffuser - 3 Element

Product Description

Material: Carbon Fibre
Finish: Polished Carbon
Fitment: Ultima GTR/Can-Am (99 - 16)
Elements: 3

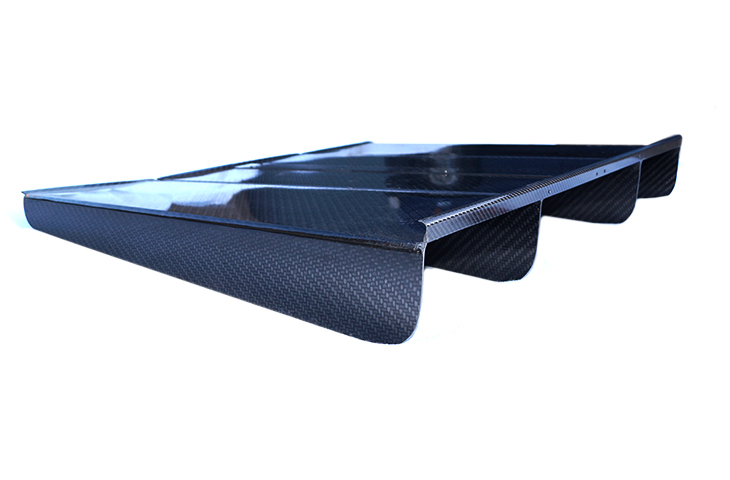

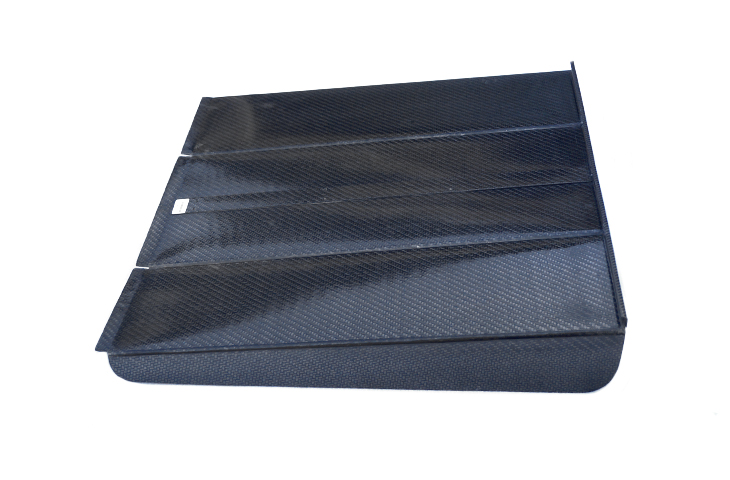

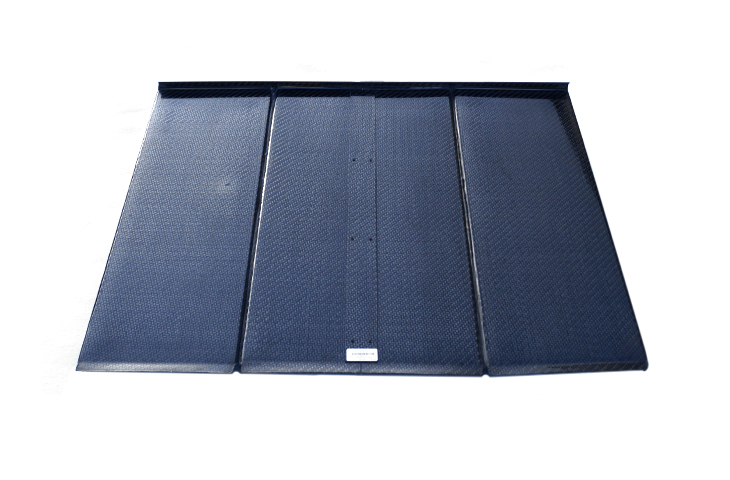

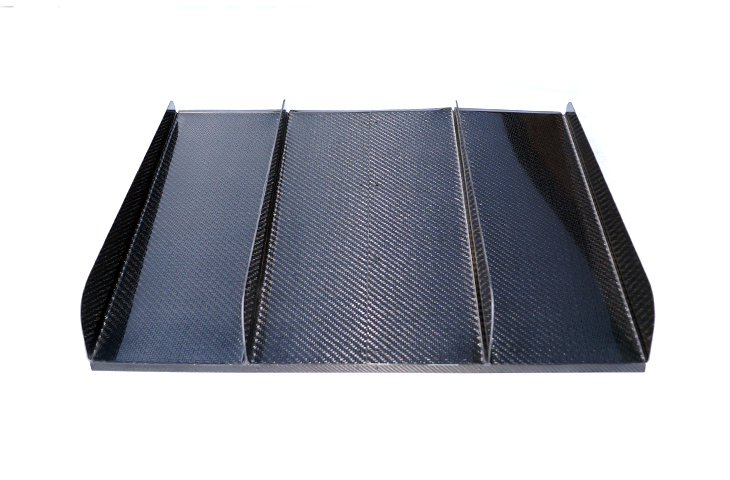

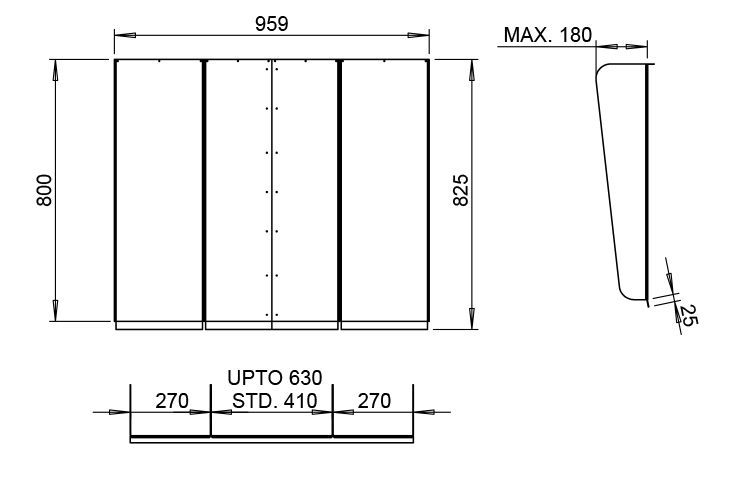

Our Carbon Fibre 3-element rear diffuser for the Ultima GTR/Can-Am supercar is designed as a bespoke fitment. The default diffuser is 950mm wide with 270/410/270mm tunnels and 800mm long to connect to the floor however some Ultima's have different widths.
We believe earlier cars might need 740-760mm width, if you only want to connect it to the underside of your clamshelll and not the floor then teh length needs to be approx 275mm, please check dimensions under your car with a piece of plywood or cardboard 1st to see dimensions and where you will fit it etc.

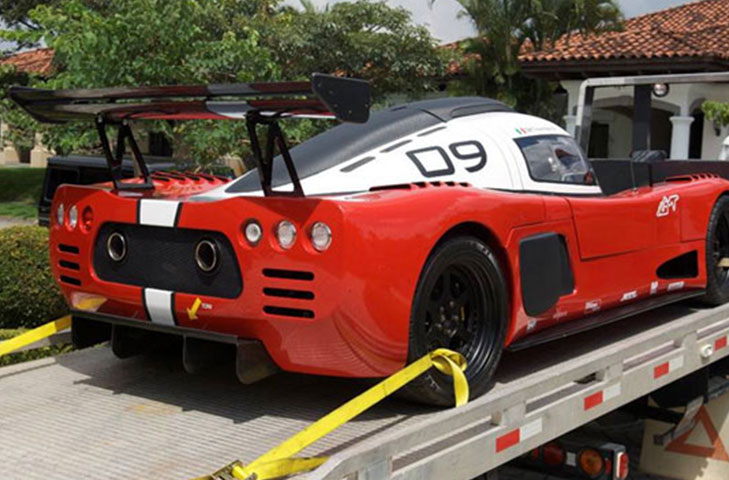

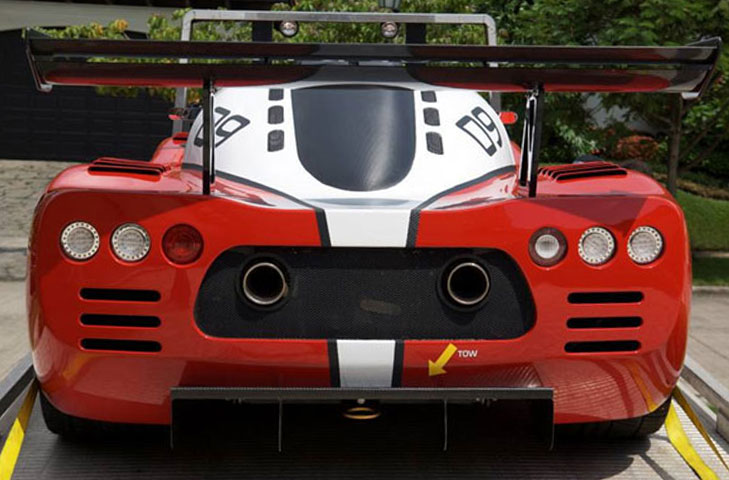

To work well aerodynamically the diffuser should ideally link up to the floor pan as per the images shown here on our listing

We are able to customize the rear diffuser to your Ultima including altering the vane depth, please contact us first before ordering.
please specify your front and rear tip Vane depth (heights) in mm (suggested default front 50mm rear 125mm)

Part Code
Made to Order
10 days

Product Options

Width 950mm default
Vane depth front (mm)
Vane depth rear (mm)
Finishing Charge
