Reverie Zolder 112D GRP Air Box - RH Blank - PX600

Reverie Zolder 112D GRP Air Box - RH Blank - PX600 - R01SE0444

Product Description

RH Zolder 4 Cylinder 112 GRP Deep Airbox
Quick release Airbox to fit pipercross PX600 range Backplates
Backplate NOT Supplied
Or our own Backplate Range R01SE0427 Shallow, R01SE0428 Deep, R01SE0429 Carbon Flat backplates, R01SE0449 Alloy Flat backplates.

Requires a snorkel or trumpet (see intake trumpets & snorkels section) to be purchased and bonded into the RH entry face, not included. Or a deep backplate with snorkels R01SE0450, Or R01SE0451

R01SE0462 Features Airbox with bonded in 100mm snorkel Assembly.

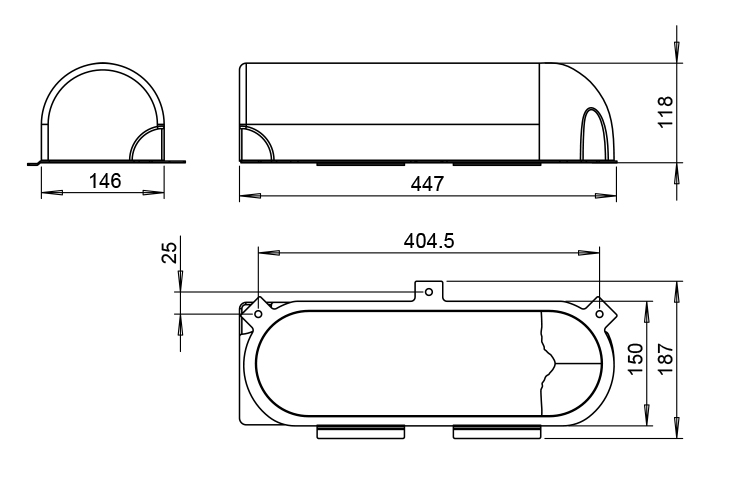

Dimensions (in mm)

Airbox Length A 440 (not inc optional snorkel)
Overall Length of fixing tabs B455
Height C190 inc Tabs top & bottom (Box Height is 147mm)

Air Box Volume (Litres): 5.375

You can also fit an ITG air filter made especially for this airbox. See ITG Foam Filter.

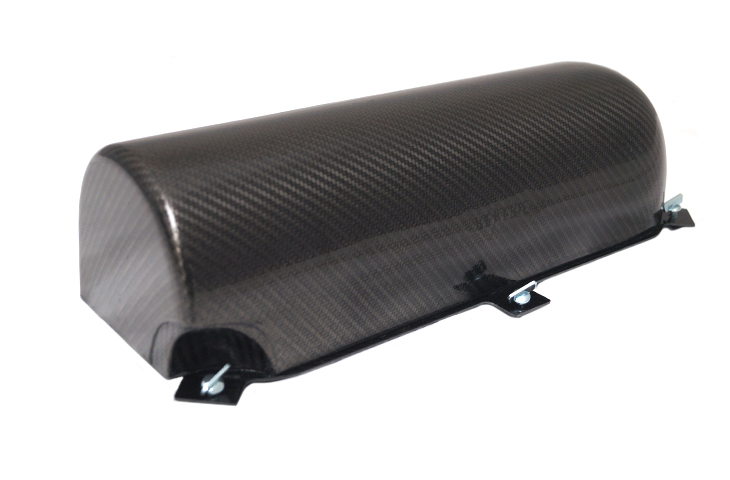

**Note images show Carbon version**

Part Code
Made to Order
10 days
View Compatible Fitments

Product Options

Finishing Charge
