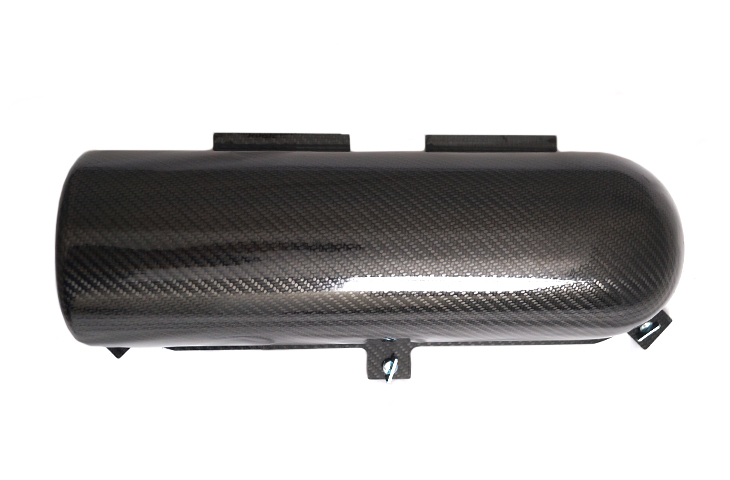

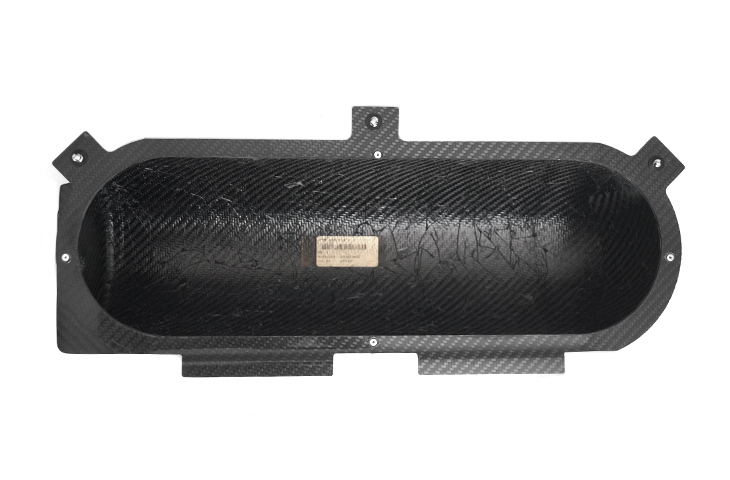

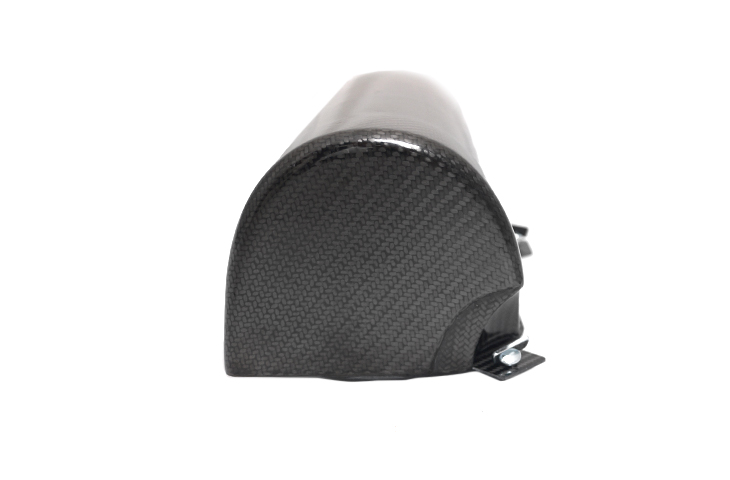

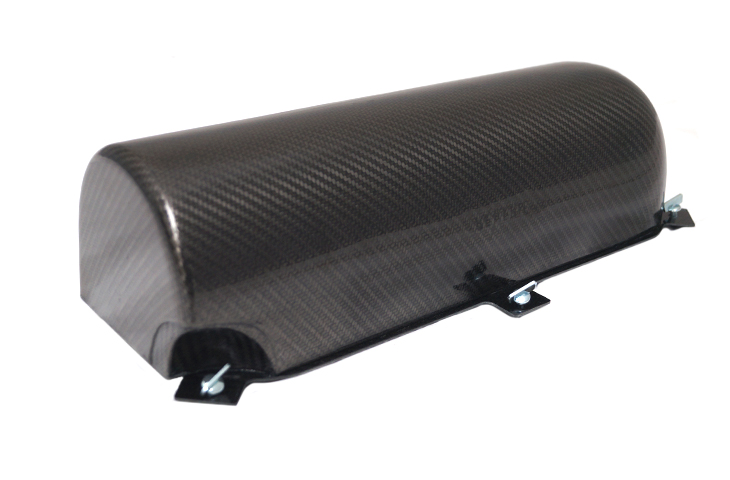

Reverie Zolder 112D Carbon Air Box - RH Blank - PX600

Reverie Zolder 112D Carbon Air Box - RH Blank - PX600 - R01SE0426

Product Description

RH Zolder 4 Cylinder 112 Deep Airbox

Quick release Airbox to fit pipercross PX600 range Backplates (Gasket size external 140x425mm)
Backplate NOT Supplied
Or our own Backplate Range R01SE0427 Shallow, R01SE0428 Deep, R01SE0429 Carbon Flat backplates, R01SE0449 Alloy Flat backplates

Requires a snorkel or trumpet (see intake snorkels & trumpets section) to be purchased and bonded into the RH entry face, not included. Or a deep backplate with built in snorkels R01SE0450, Or R01SE0451

R01SE0460 is assembled with a straight 100mm entry snorkel if required.
Dimensions (in mm)

Airbox Length A 440 (not inc optional snorkel)
Overall Length of fixing tabs B455
Height C190 inc Tabs top & bottom (Box Height is 147mm)

Air Box Volume (Litres): 5.725

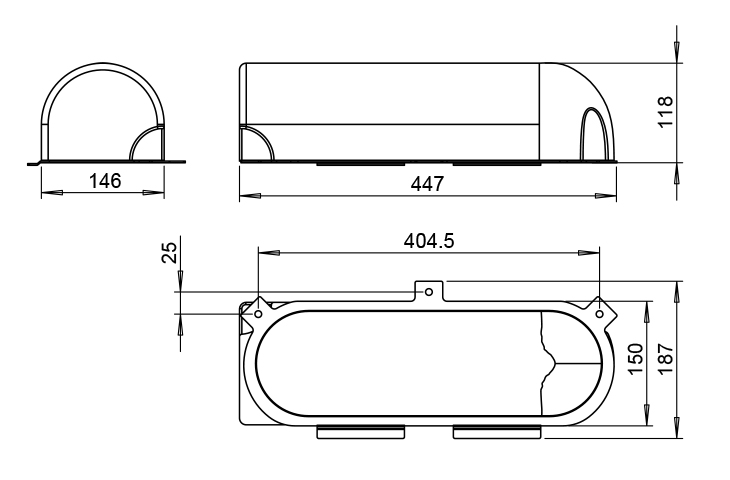

A Technical drawing of this product can be found here

You can also fit an ITG air filter made especially for this airbox. See ITG Foam Filter.

Part Code
In Stock
In Stock
£292.95 (ex. VAT)

View Compatible Fitments

Product Options

Finishing Charge
