Reverie Zolder 112D Carbon Air Box - LH Blank - PX600

Reverie Zolder 112D Carbon Air Box - LH Blank - PX600 - R01SE0435

Product Description

LH Zolder Carbon 4 Cylinder 112 Deep Airbox

Quick release Airbox to fit pipercross PX600 range Backplates
Backplate NOT Supplied
Or our own Backplate Range R01SE0427 Shallow, R01SE0428 Deep, R01SE0429 Carbon Flat backplates, R01SE0449 Alloy Flat backplate.

Requires a snorkel or trumpet (see intake trumpets & snorkels section) to be purchased and bonded into the LH entry face, not included. Or a deep backplate with snorkel entry R01SE0450, Or R01SE0451

R01SE0459 is assembled with a straight 100mm entry snorkel if required.
Dimensions (in mm)

Airbox Length A 440 (not inc optional snorkel)
Overall Length of fixing tabs B455
Height C190 inc Tabs top & bottom (Box Height is 147mm)

Air Box Volume (Litres): 5.725

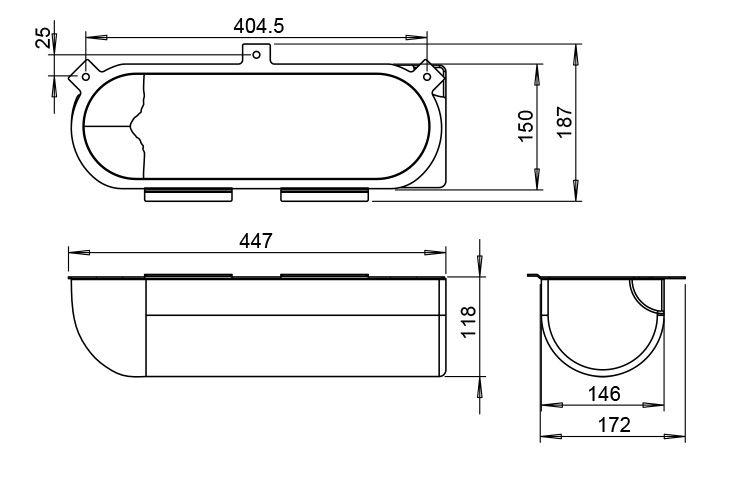

A Technical drawing of this product can be found here

You can also fit an ITG air filter made especially for this airbox. See ITG Foam Filter.

Part Code
Made to Order
10 days
