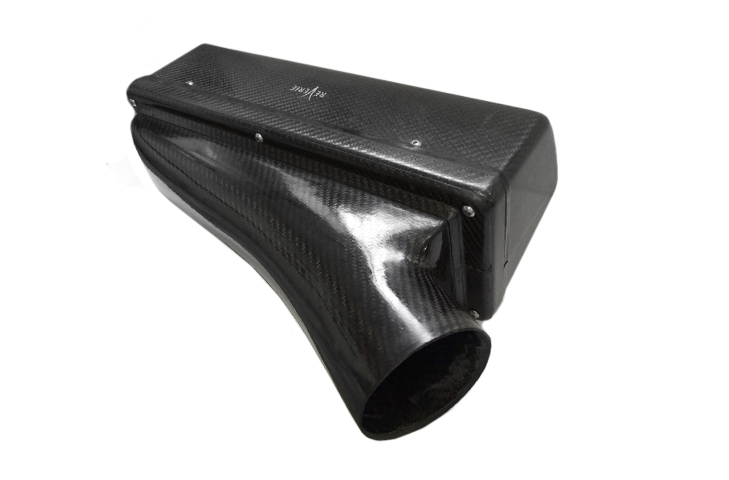

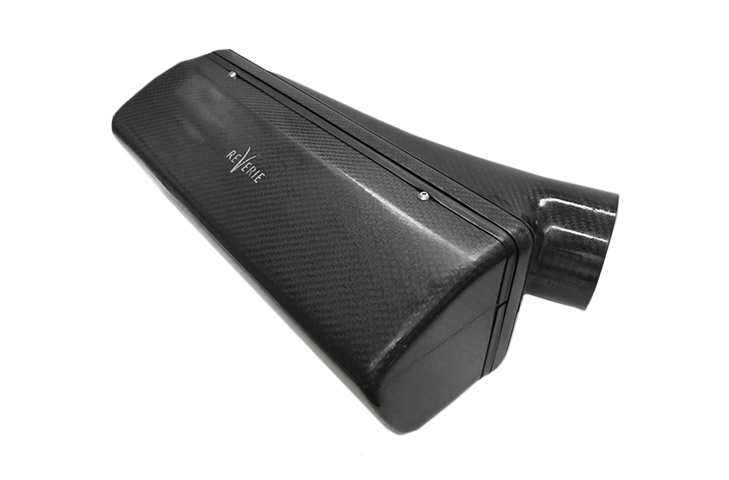

Reverie Interlagos 425X Carbon Air Box - 100mm Side Inlet Filter Cowl Kit

Reverie Interlagos 425X Carbon Air Box - 100mm Side Inlet Filter Cowl Kit - R01SE0432

Product Description


Fitment For: 4 cylinder engines Depth of Mainbox Can be trimmed by a further 20mm Max if required. Mounting to throttle bodies or Carbs on one of three mainbox side faces.
Features internal Panel filter with 100mm entry ram air feed cowl
We also sell replacement Filter elements for this airbox -R01SE0421
Dimensions (in mm):
A: Max External Length = 425mm
B: Max External Height = 140mm
C: Max External Depth = 77mm (Add on Base and Top cowl depths!)
D: Depth of Base = 20mm + Add on Dimensions of top cowling
E: Height of Top Air feed Cowl (100mm entry) = 155mm
F: Height of Top air feed cowl at centre point of length = 65mm
G: Height of Top air feed cowl at rearmost point of length = 45mm
H: Distance Between maximum width of Airbox and Bottom Wall = 110mm
I: Maximum Width of Airbox =112mm
Air Box Volume (Litres): 9.95


Part Code
R01SE0432
Weight
0.00kg
Made to Order

SLT
10 days
UOM
Each
Price
£523.95
