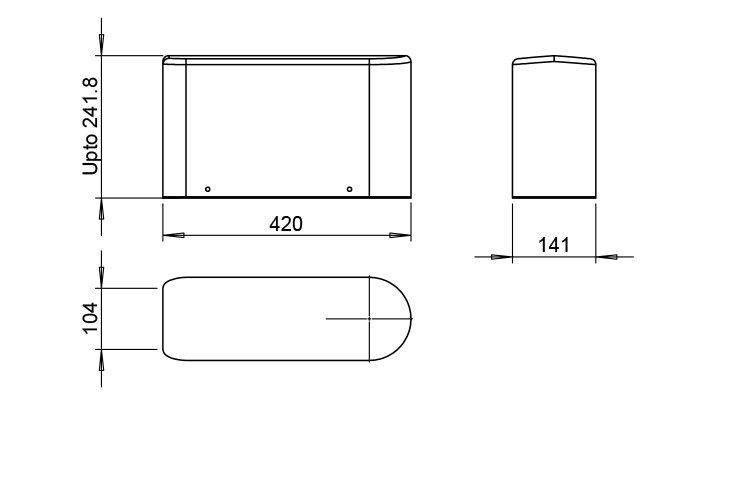

Dimensions: L422mm x H144mm x D239mm (max)
Volume: 14.5L
Back Plate: 2mm (flat)
Construction: GRP
Weight: 0.7kg
Fitment: Universal, 4-cylinder Engines
Compatible Air Filters: R01SE6173, R01SE6172
Technical Drawing: See Technical Drawings Page

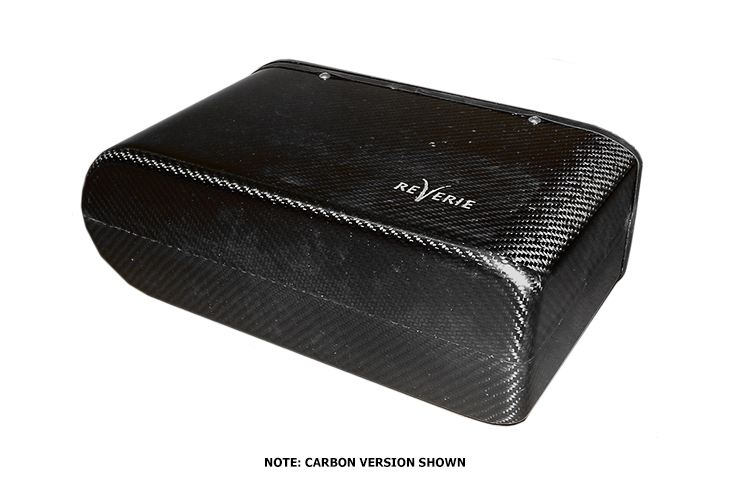

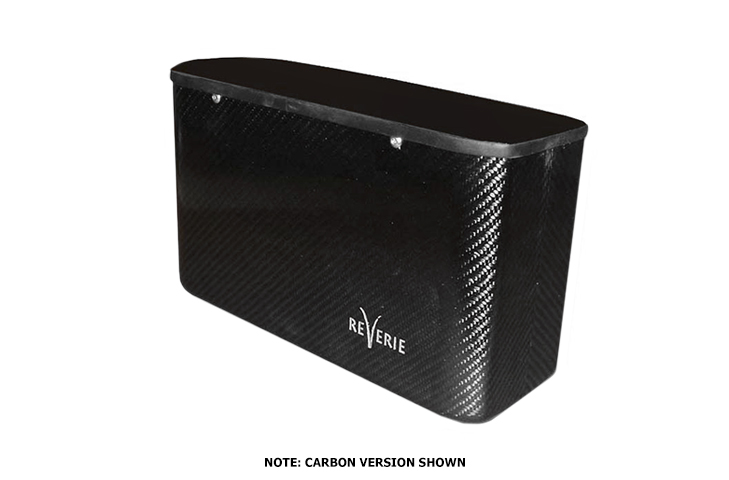

The ReVerie Hockenheim 422 GRP air box is suitable for 4 cylinder engines with horizontal or vertical intakes and on engines with closely spaced intakes. The Hockenheim 422 is compatible with a range of inlets (not supplied) that can be bonded onto any face of the air box to allow connection to remote air filters or air filter canisters or Micropore ducting.

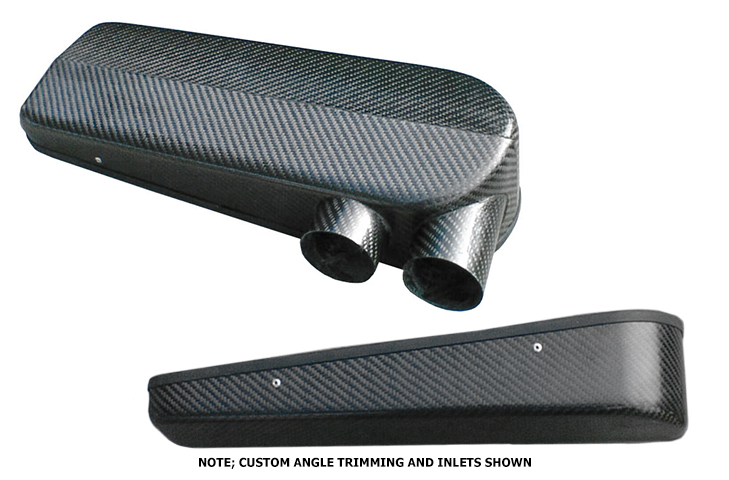

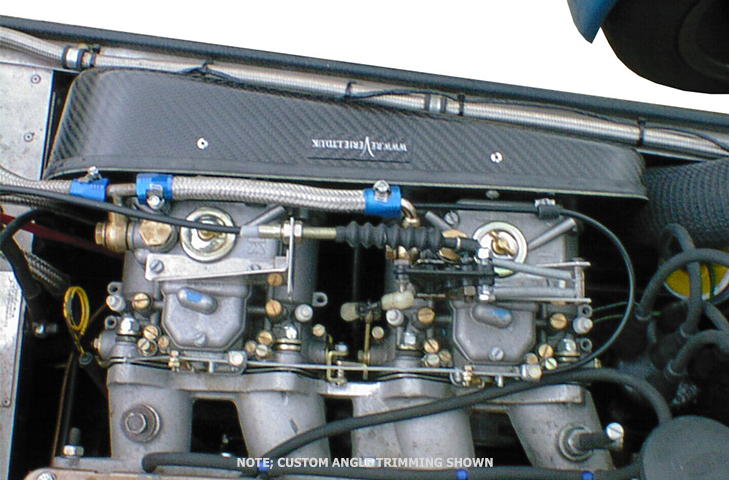

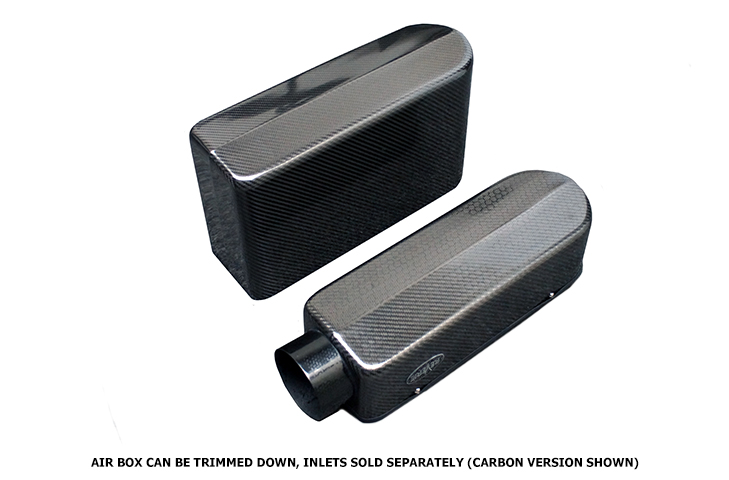

The Hockenheim 422 air box can be trimmed to your required depth (max 239mm) to suit your application and is also suitable for angled trimming.
