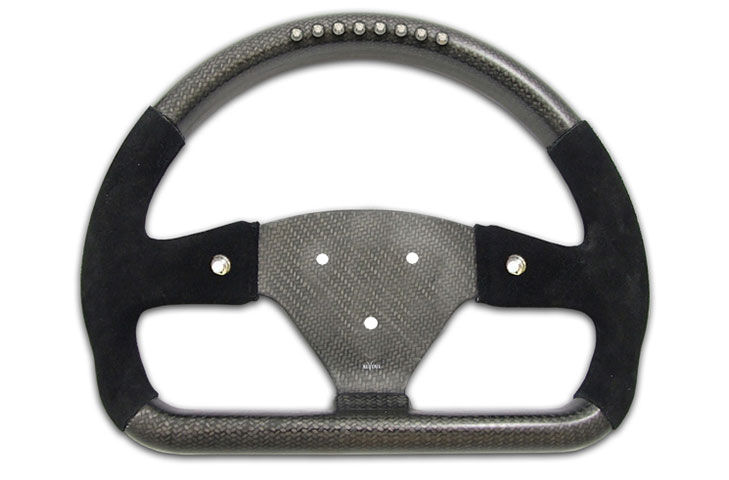

Rally 330 x 260 Carbon Flat-Bottomed Steering Wheel - 3-Stud (50.8mm PCD), Half Alcantara, 2 Button, MoTec SLM

Product Description

Material: Carbon Fibre
Mass: 320g approx
Outer Diameter: 330mm
Height: 260mm

The Reverie Carbon Fibre Rally 330mm x 260mm flat bottomed steering wheel is designed with a solid centre with hollow spokes & rim.Autoclave cured as a single piece, improving stiffness & reducing inertia, it weighs up to 75% less than an equivalent size alloy wheel. The PCD (Pitch Circle Diameter) centre drilling is 50.8mm and consists of 3 holes placed at 10, 2 and 6 O'Clock. The integrated SLM may be used for shift lights, warning lights or other indicators as programmed by the user. It provides eight multicolour LED indicator lights in a compact array. The colour, intensity and purpose of each LED can be controlled independently, providing enormous flexibility and scope for customisation. A set of patterns can be defined with various colour combinations and flashing modes, indicating for example: stop immediately, continue with caution, pit lane speed limiter active and of course, up-shift and down-shift. The LEDs can be programmed in a priority order so that, for example, a warning light can override a shift light. The SLM is configured and controlled using a MoTeC ECU, display or data logger. Compatible MoTeC devices have special programming functions for the SLM. The module is connected via CAN eliminating the need to use auxiliary outputs

A complete specification for the MoTeC SLM is available here

Please see video with Shift Light Module "in action" here


Part Code
Made to Order
10 days
View Compatible Fitments

Product Options
