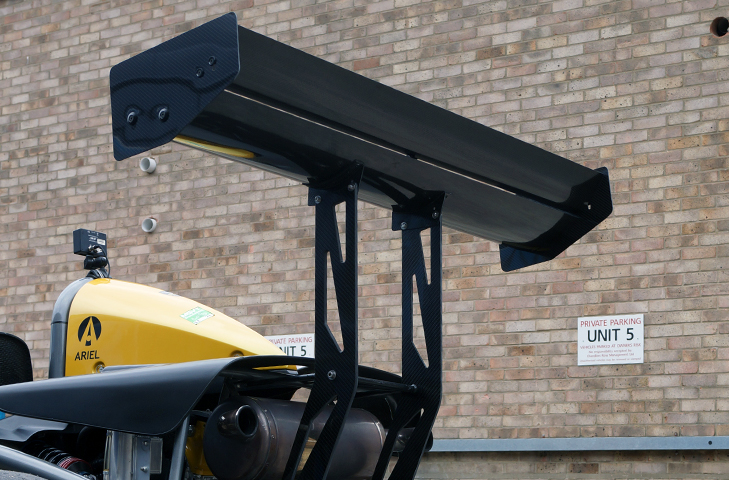

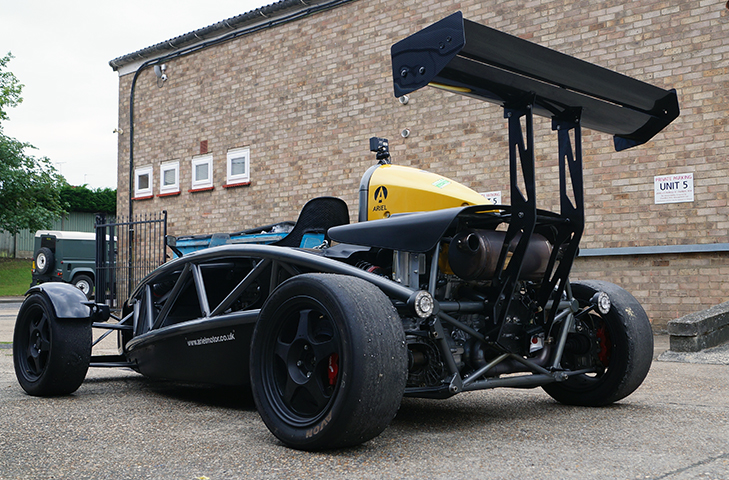

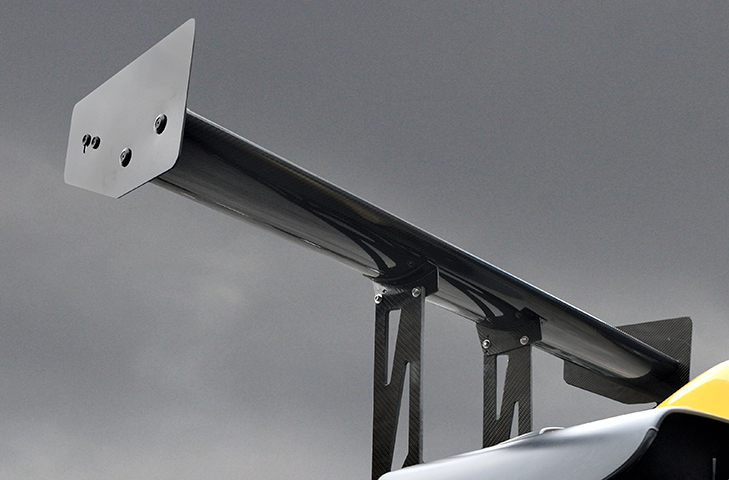

Ariel Atom 3 Dual-Element Carbon Rear Wing (Straight) - 225/130mm Chord x W1360mm, Adjustable

Product Description

Wing Span: 1360mm
Material: Carbon Fibre
Finish: Polished Carbon

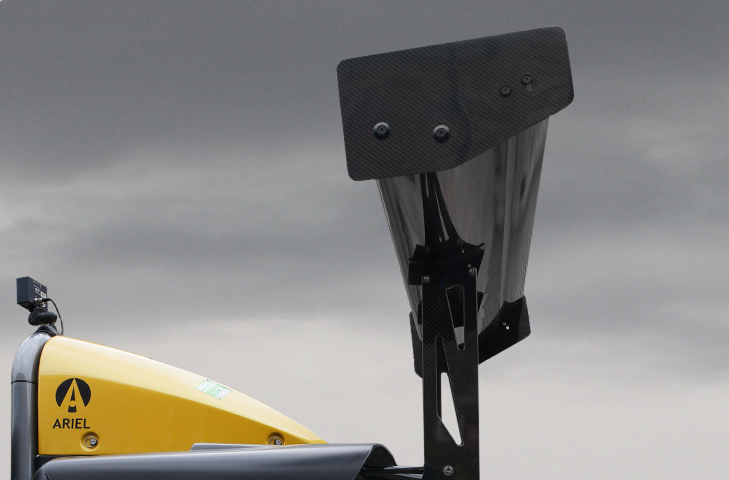

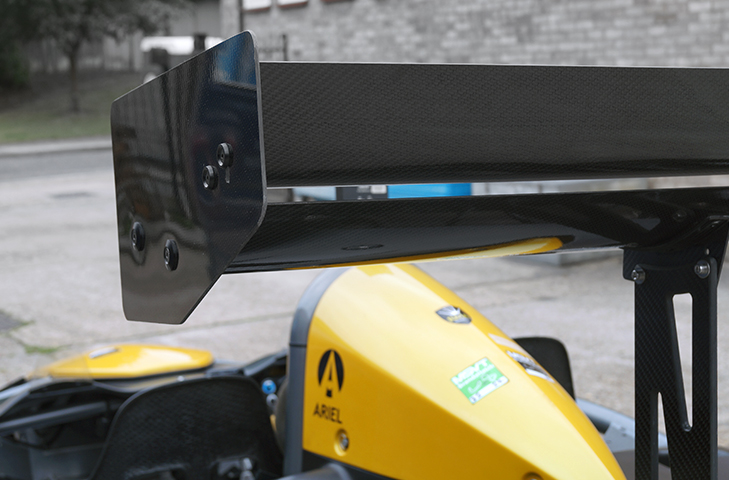

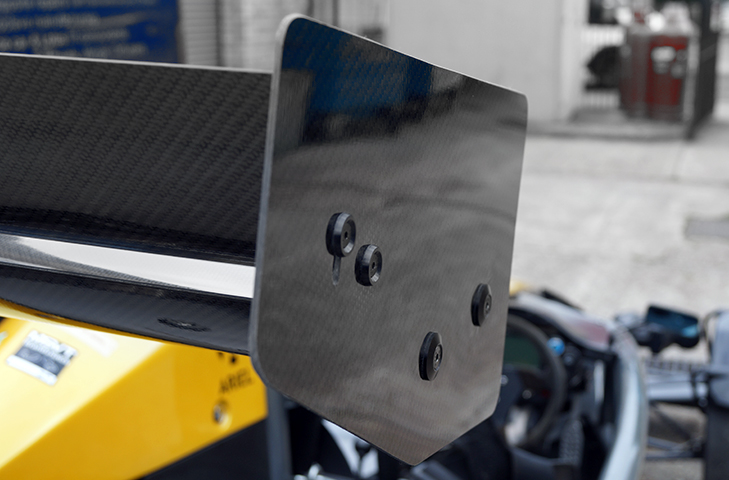

Components: Rear dual element Wing, 2x end plates & support tabs (not supplied; wing chassis support legs)

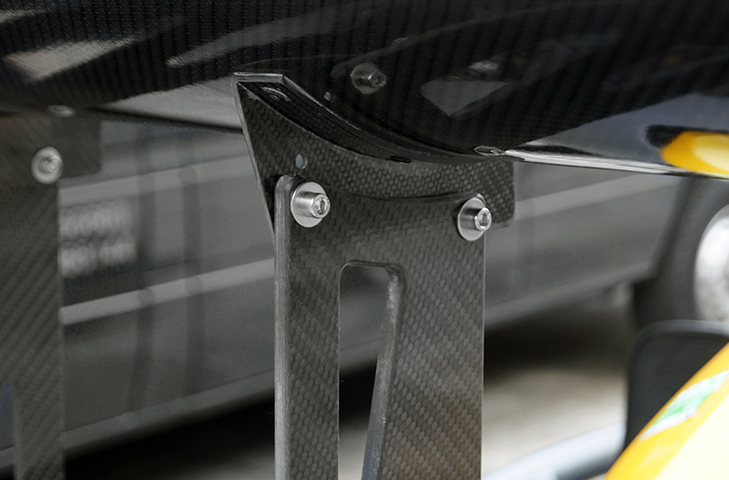

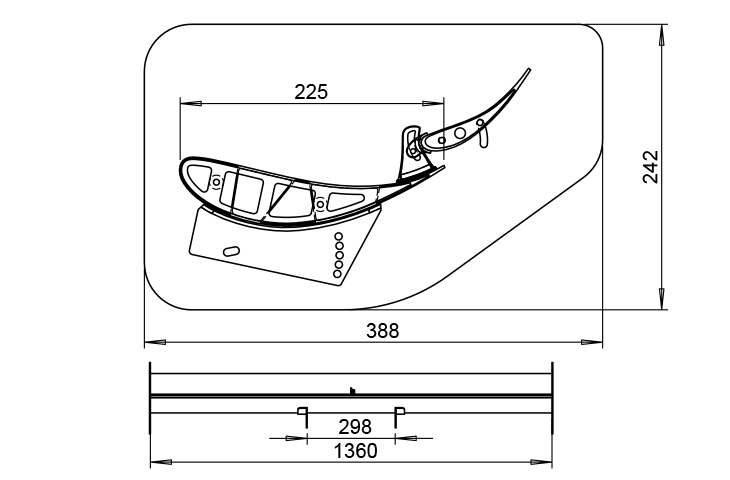

Dual Element 225mm x 130mm straight wing, 1360mm wide including endplates. Carbon wing drop tab mounts 308mm outside to outside of carbon drop tabs to fit Inside Atom 3 factory alloy supports. If you have Chassis wing brackets with a different width spacing please specify when ordering

Factory bracket Mounting notes:
The whole mounting kit required to the chassis is standard Ariel factory. Tom Siebert at the factory can quote. You will need to purchase the different rear no plate bracket, the 2 flat uprights, ~a horizontal brace, 2 modified rear silencer shock absorbing mounts (longer threads to allow for mounting the horizontal brace). If you have a high level rear brake light, this has to be relocated to the horizontal brace above as the front of the brace bolts to where the light is mounted. There is a different back plate for this light which the factory stock. This is the most difficult part of the installation as the cable is threaded through the centre of the chassis tubes and isn't always long enough when remounted further back on the new wing horizontal brace. The back plate is fixed to the rear of the light unit by very strong glue.. the factory normally bin it and use a new one and rewire it through the chassis tube as it's quicker!

Part Code
R01SB0601
Made to Order

SLT
10 days
UOM
Each
Price
£1,906.22

Product Options

Finishing Charge
Qty
