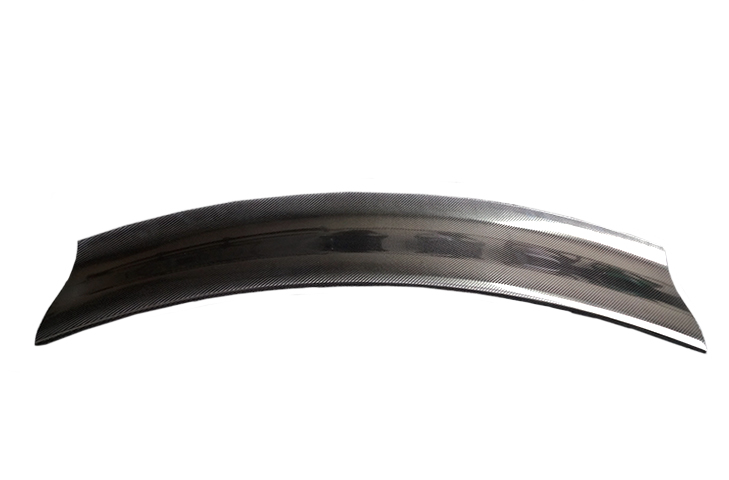

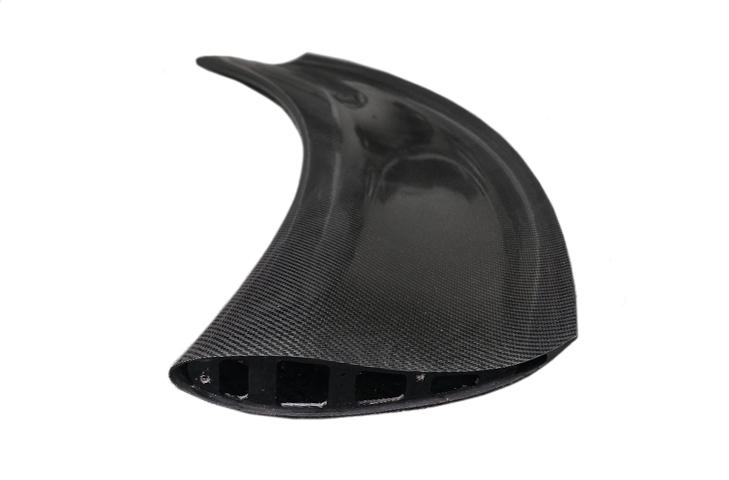

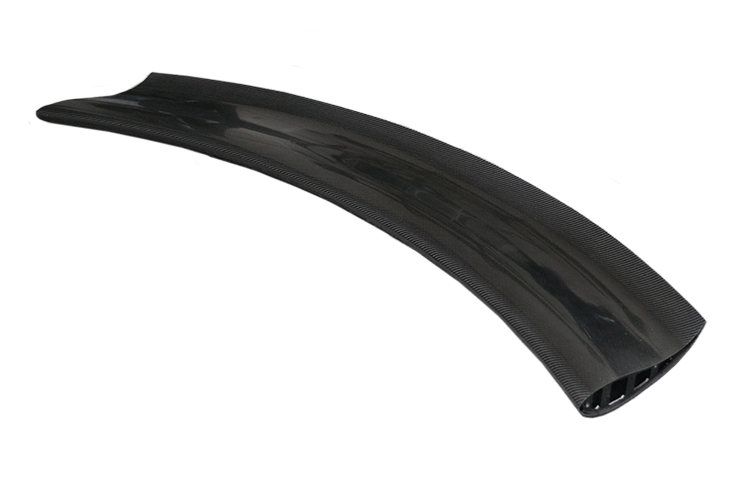

310mm Chord High Downforce Curved Rear Wing 1500mm Bottom Mounted

Product Description

With its 310mm chord length and unique profile, this curved rear wing provides optimal downforce, improving stability and traction at high speeds. The curved design ensures smooth airflow, reducing drag and enhancing overall aerodynamics. The wing width can be specified to a maximum width of 1500mm and can be clear coated or colour painted at extra cost. The special Carbon Fibre construction technique used to create this wing results in a weight of less than 3.0kg

Our angled end plates, which compliment this wing, can be purchased separately.

Gurney flap to fit this wing

Technical data available for this wing

Part Code
In Stock
In Stock
£1,399.00 (ex. VAT)

View Compatible Fitments

Product Options

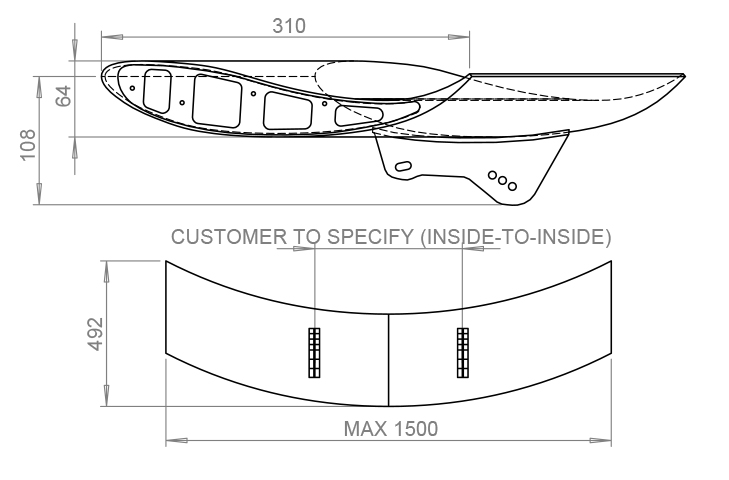

Required Span (mm)
Distance between mounting tabs inside to inside (mm) (if applicable)
Finishing Charge
