Material: Carbon Fibre
Finish: Polished Carbon Front & Back
Mass: 2.4 kg approx

Twin skin for extra stiffness.
Drop in replacement for seats in the Lotus Elise S1/S2, 340R, 2-Eleven, Exige S1/S2 & Vauxhall VX220/Opel Speedster.
Fitment in other cars via fixed seat subframes or 340R subframes.

Dimensions (in mm):
A: External max width at shoulder = 470
B: Seat bottom to mid shoulder = 630
C: External max width at base = 405
D: Inside max width at hips = 325
E: Max height = 920
F: Base length (approx) = 450
G: Back inclination (degrees) = 75

Fitment Options (State car when ordering)

All Vehicles Subframe options:
Composite Fixed Seat Subframe
Silver Alloy Monoblock Seat Mounts
Black Steel Seat Mounts
Lotus 340r, Adjustable Driver or Fixed Passenger Side Subframe Kits

LOTUS FITMENT DETAILS (Some Require adapter brackets see list):
3-point seat belts only in: Elise S1 (std), Elise S2 (pre VIN:72400), Elise 111R (pre VIN:32403), Exige S1 (std), Exige S2 (pre VIN:82395).
Use original subframes.

3/4/5/6-point harness belts in: Elise S1 (std), Elise S2 (pre VIN:72400), Elise 111R (pre VIN:32403), Exige S1 (std), Exige S2 (pre VIN:82395).
Driver side: Subframe Conversion Kit, for S1 & S2 Elise/Exige
Passenger Side: Lotus 340r, Fixed Passenger Side, Seat Subframe Kit

3/4/5/6-point harness belts in: 340R (std), Exige S1 Sport, VXR220 (std).
Use original subframes.

3/4/5/6-point harness belts in:Elise S2 (post VIN:72400), Elise 111R (post VIN:32403), Elise Federal (std), Exige S2 (post VIN82395), Exige S2 Sport, VX220 (std).
Driver side: Subframe Conversion Kit, for Vauxhall VX220/Opel Speedster
Passenger Side: Lotus 340r, Fixed Passenger Side, Seat Subframe Kit

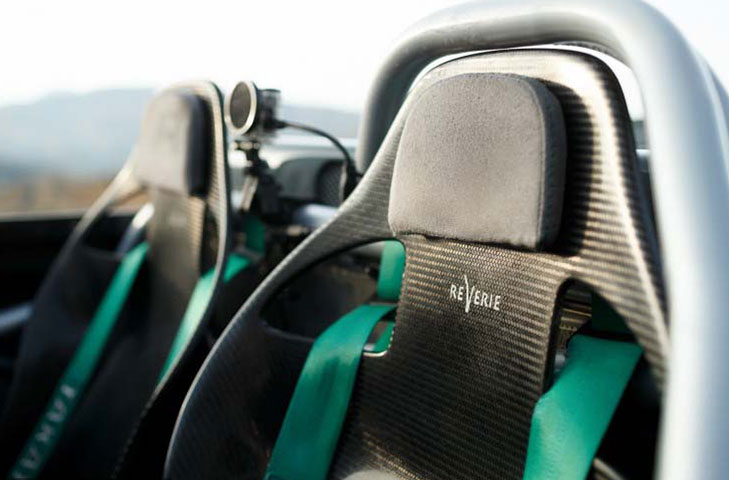

Removable Lateral Head Restraint
See Cushion Kit Trim Options

Product Options

Please enter the vehicle you wish to fit to ::   Finshing Charge ::   Select Finishing OptionLacquering (add £139.00)

Qty ::
