Steering wheel dimensions

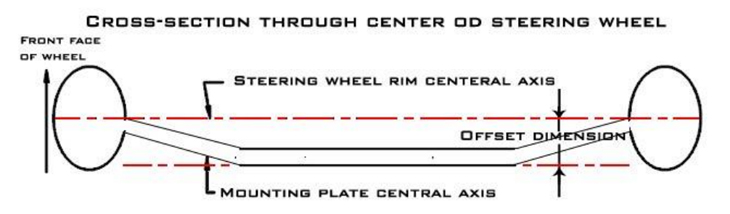

Cross sections

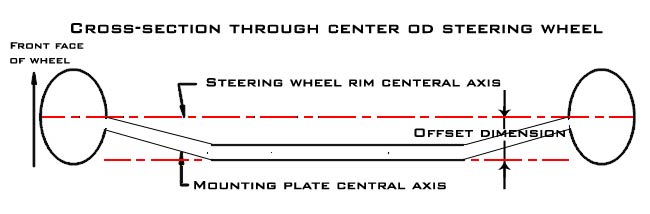

Diagram showing horizontal cross section of steering wheel
Steering wheel
Rim section
Diameter (mm)
Set back (mm)
Wheel mounting offset from centre point (mm)
Approx mass (g)
32x25mm oval section (Grips bulge to 32x30.5mm at 10 and 2 o'clock)
255
0
0
215
33.5x26.3mm oval section (Grips bulge to 33.5x32mm at 10 and 2 o'clock)
270
0
0
215
37.9x27.3 oval section (Grips bulge to 37.9x33.5 at 10 and 2 o'clock)
282
-4.3
0
230
32.3x28.3mm oval section (Grips bulge to 32.31.5mm at 10 and 2 o'clock)
312
-15.85
0
253
32.3x28.3mm oval section (Grips bulge to 32.31.5mm at 10 and 2 o'clock)
312
-15.85
0
303
32.3x28.3mm oval section (grips bulge to 32x32mm at 10 and 2 o'clock)
312
-15.85
23
253
37.8x27.8 oval section
330
-18
0
302
33x22 oval section
330
-18.7
0
275
35.8x24.8 oval section
330
-18.7
0
325
33x22mm oval section
350
-18.7
0
345
35.8x24.8mm oval section
350
-18.7
0
395
31x28mm oval section
350
-18.7
0
345
31x28 oval section
350
-18.7
0
395

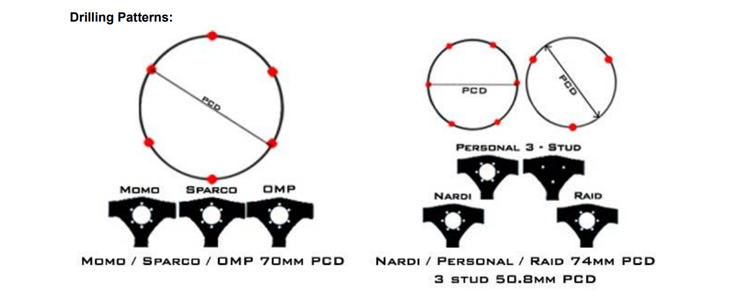

Drilling patterns
