Seat Size Guide

Our Seat size guide contains all of the key dimensions of our seat range, which will help you determine which of our seat will fit your vehicle if a dimension your are looking for isn’t shown feel free to call us and we will be able to provide you with the dimensions you need.

All Dimensions in mm

A.    Outside maximum width of seat at shoulders

B.    Maximum internal width of seat at shoulders

C.    Maximum internal width at Waist

D.    Outside sub frame mounting face width

E.    Maximum external width at thigh / knees

F.    Total seat height from mounting surface

G.    Height to shoulders from mounting surface

H.    Distance between seat mounting screws

I.    Total Seat length (when mounted with angle x shown)

J.    Internal back support Length (rear of seat base to top of headrest)

K.    Harness shoulder strap hole height

L.    Height to base of shoulder strap holes from mounting surface

Please note: 'D' dimensionis taken from table above

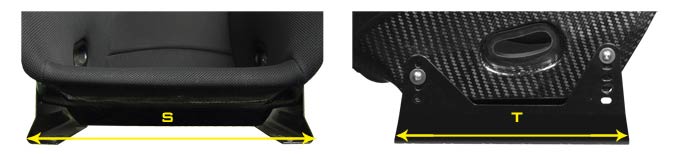

S.    Total External Sub Frame Width
T.    Total Sub Frame length
