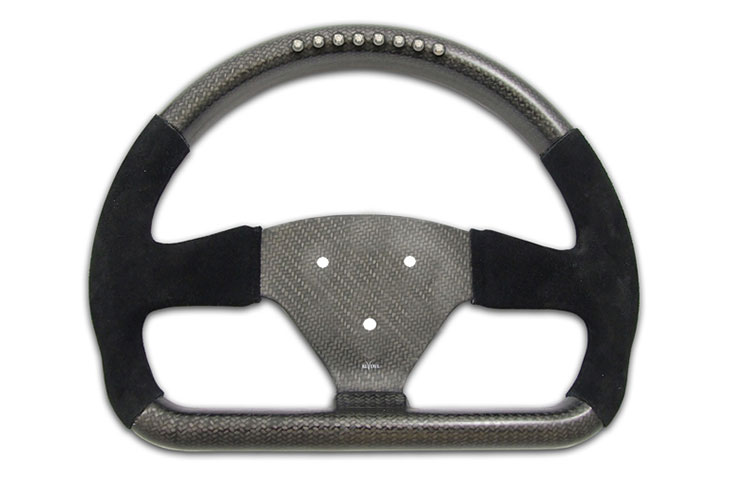

Rally 330 x 260 Carbon Flat-Bottomed Steering Wheel - 3-Stud (50.8mm PCD), Half Alcantara, MoTec SLM

Product Description

Material: Carbon Fibre
Mass: 320g approx
Outer Diameter: 330mm
Height: 260mm

The Reverie Carbon Fibre Rally 330mm x 260mm flat bottomed steering wheel is designed with a solid centre with hollow spokes & rim.Autoclave cured as a single piece, improving stiffness & reducing inertia, it weighs up to 75% less than an equivalent size alloy wheel. The PCD (Pitch Circle Diameter) centre drilling is 50.8mm and consists of 3 holes placed at 10, 2 and 6 O'Clock. The integrated SLM may be used for shift lights, warning lights or other indicators as programmed by the user. It provides eight multicolour LED indicator lights in a compact array. The colour, intensity and purpose of each LED can be controlled independently, providing enormous flexibility and scope for customisation. A set of patterns can be defined with various colour combinations and flashing modes, indicating for example: stop immediately, continue with caution, pit lane speed limiter active and of course, up-shift and down-shift. The LEDs can be programmed in a priority order so that, for example, a warning light can override a shift light. The SLM is configured and controlled using a MoTeC ECU, display or data logger. Compatible MoTeC devices have special programming functions for the SLM. The module is connected via CAN eliminating the need to use auxiliary outputs

A complete specification for the MoTeC SLM is available here


Please see video with Shift Light Module "in action" here
