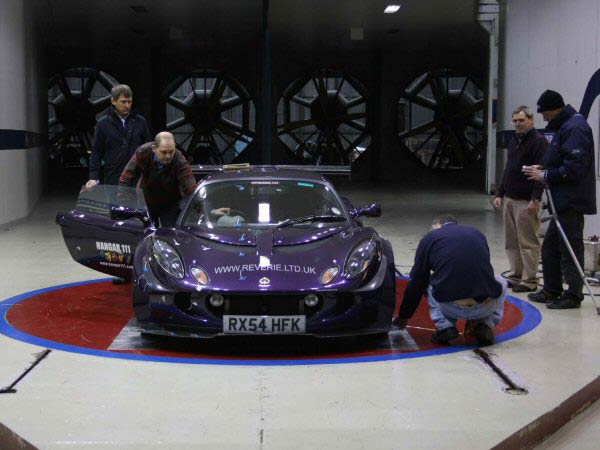

MIRA wind tunnel overview

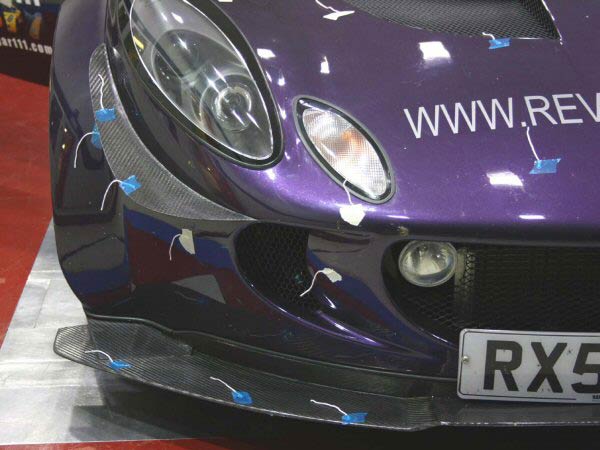

Front spoiler and canards, Woolies in position ready for flow visualisation on front spoiler & canards

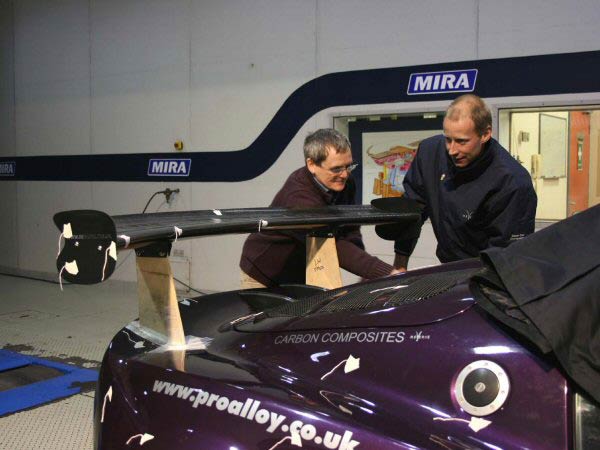

Wing in high position. Wing underside raised to 283mm above rear clamshell deck

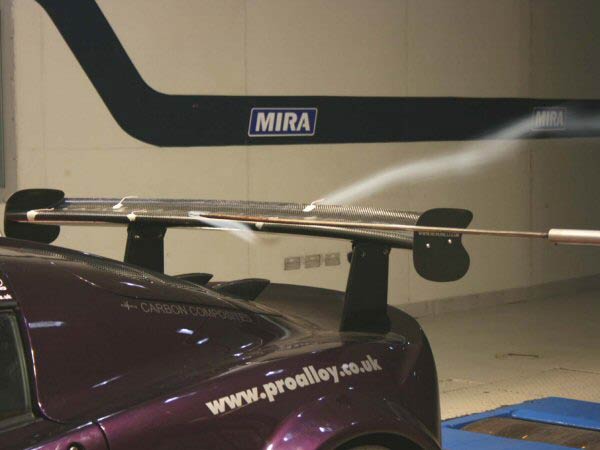

Air flow on high wing. Air flow smoke visualisation over wing with underside 223mm above rear clamshell deck

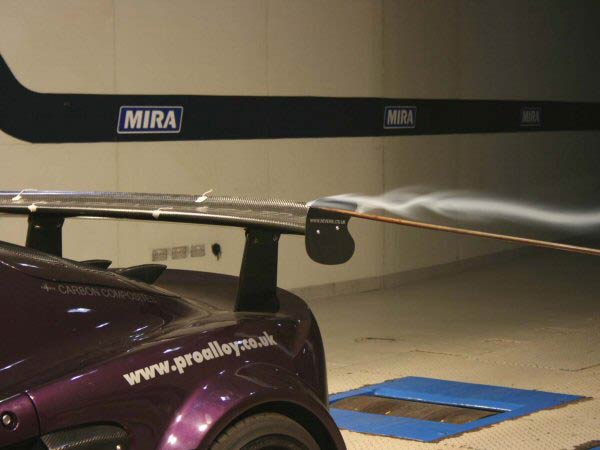

Wing vortex. Smoke visualisation showing vortex generating wind end plates

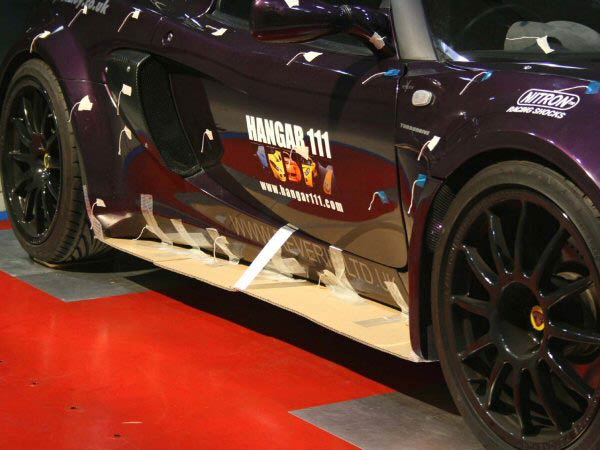

Simulated and tested, horizontal side sills.

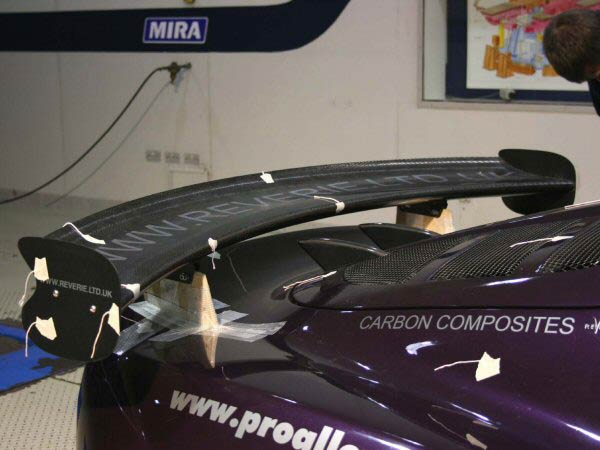

Low position Wing.

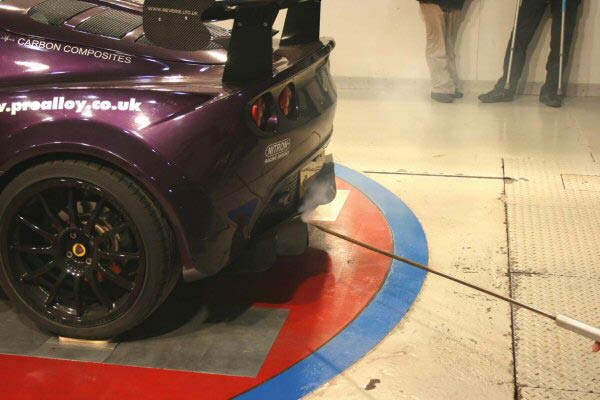

Poor flow from 111r type exhaust centre tunnel due to exhaust tip flow interference

Good flow from no exhaust 111s type rear diffuser centre tunnel

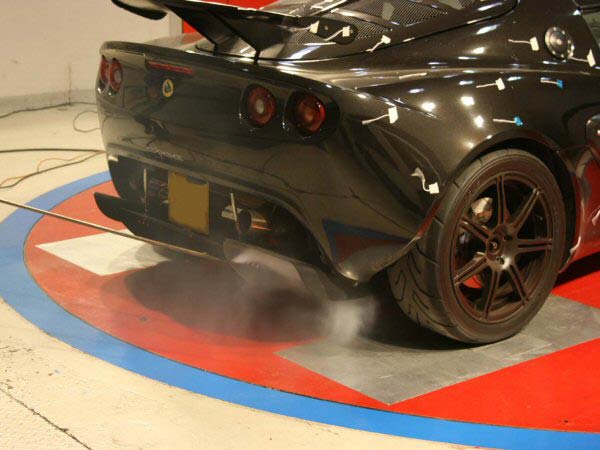

Rear diffuser side tunnel flow stalled due to wishbone No floor disturbance

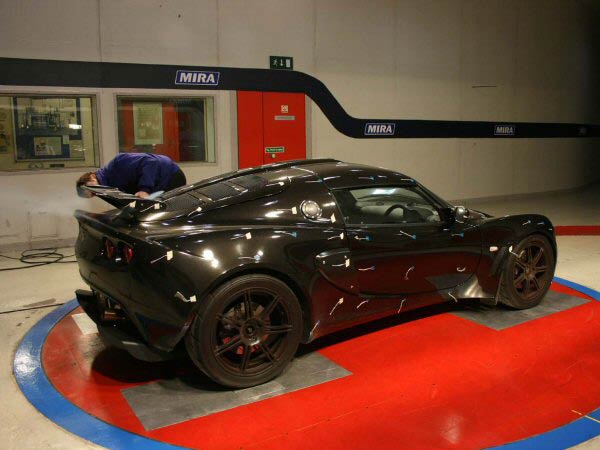

Standard car wing flow

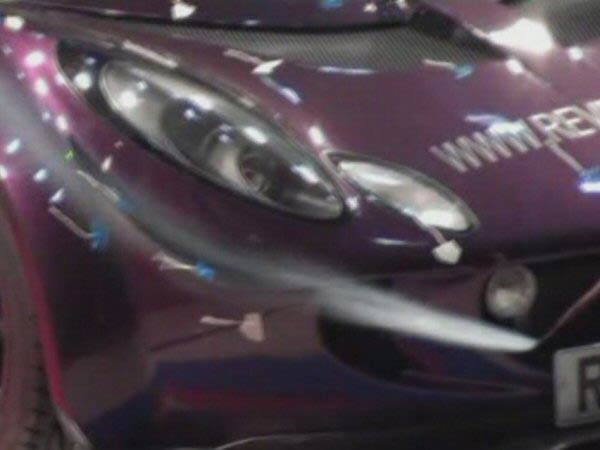

Smoke visualisation showing attached flow above & below front canards
